best sales hot-rated hooha High Speed Automatic Terminal Crimping Machine (Single Head)

Name: best sales hotrated hooha High Speed Automatic Terminal Crimping Machine Single Head
Brand: HOOHA
Price: 6700 USD

Brand Name : HOOHA

Model Number : HH-G1

Certification : SGS,CE,ISO

Place of Origin : Guangdong, China

MOQ : 1set

Price : USD6700/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1 set 30days

Delivery Time : 30days

Packaging Details : film packing

Usage : Crimping

Capacity : 2 TON

Wire specification : AWG32 -- AWG18

Power : AC 220V 50/60 Hz single-phase

Condition : new

Warranty : 12 Months

Twisting length : 3mm--20mm

External dimensions : 680W x 850L x 1250H mm

Weight : 320kg

Air pressure : 5-8kgf (need clean and dry air)

Contact Now

Specification

best sales hot-rated hooha High Speed Automatic Terminal Crimping Machine (Single Head)

Product name	HH-G1 High Speed Automatic Terminal Crimping Machine (Single Head)
Type	crimping machine
Model	HH-G1
Power	AC220V 50/60 Hz single-phase
Function	Wire cutting, single-end stripping, both-end stripping, single-end pressing, single-end twisting, and single-end half-stripping
Productivity	No twisting: 4800 pieces/hour; twisting: 3500 pieces/hour (within 300mm)
Wire specification	AWG32 -- AWG18
Stripping length	0.5mm-13mm
Processing length	19mm -- 9999mm(refer to the middle part with skin)
Cutting precision	The error less than 1mm (set length x 0.002) can be corrected.
Twisting length	3mm--20mm
Air pressure	5-8kgf (need clean and dry air)
Testing equipment	Abnormal entering, insufficient pressure, unsound punching, no terminal, no ending, and no stripping
Pressing capacity	2.0 tons
External dimensions	680W x 850L x 1250H mm
Weight	320kg

Product Description

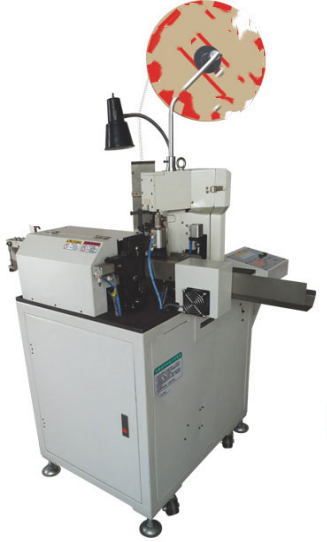

HH-G1 High Speed Automatic Terminal Crimping Machine (Single Head)

Feature Description:

1. This machine uses Taiwan's original imported single-chip computer and human-machine key.
interface, using Japan's SMC cylinder, solenoid valve, Germany's FESTO solenoid valve, regulating valve, Japan and the spring IDEC switch, Japan's SUNX optical fiber, optical fiber amplifier, Omron OMRON encoder, sensor, Japan Sumitomo Sumitomo reducer and so on.
2. Computerized knife adjustment, automatic detection, full computer control.
3. Good machine stability, easy to learn and use Chinese operation, 3 years warranty for the whole machine (except wearing parts).
4. Special wire needs to be heated peeling, can be specially customized heating type cut wire peeling automatic terminal machine, such as Teflon wire, fiber wire and other processing!
