High section electrical conductor stranding machine 2500 type CPD Drum twister with individual motor

Name: High section electrical conductor stranding machine 2500 type CPD Drum twister with individual motor
Brand: Hooha
Price: 350000 USD

Quality High section electrical conductor stranding machine 2500 type CPD Drum twister with individual motor wholesale

Brand Name : Hooha

Model Number : HH-2500

Certification : ISO, CE, SGS

Place of Origin : Guangdong, China

MOQ : 1unit

Price : USD350000/unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1unit30days

Delivery Time : 60days

Packaging Details : film/wooden package

Usage : Stranding

Single wire Diameter : Max. 120mm

Rotating speed of pay-off : 35r/min

Twisting pitch : Stepless adjusted

Traction : Max. 5T

Pay-off size : PND 1600mm

Traction motor : 18.5kW*2(AC)

Control Systems : PLC

Contact Now

The Wire Samples

High section electrical conductor stranding machine 2500 type CPD Drum twister with individual motor

Products Description

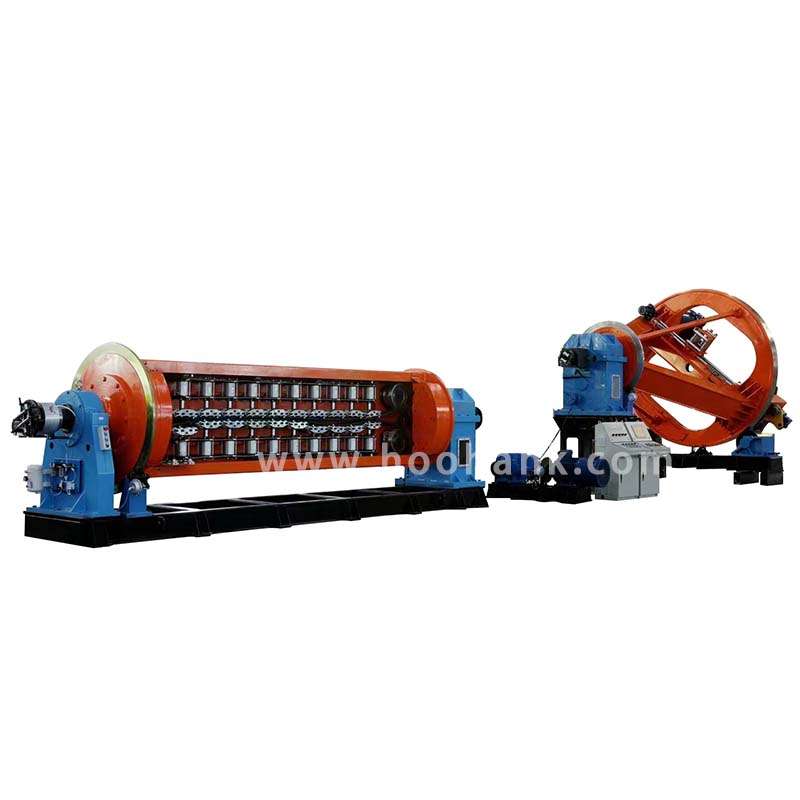

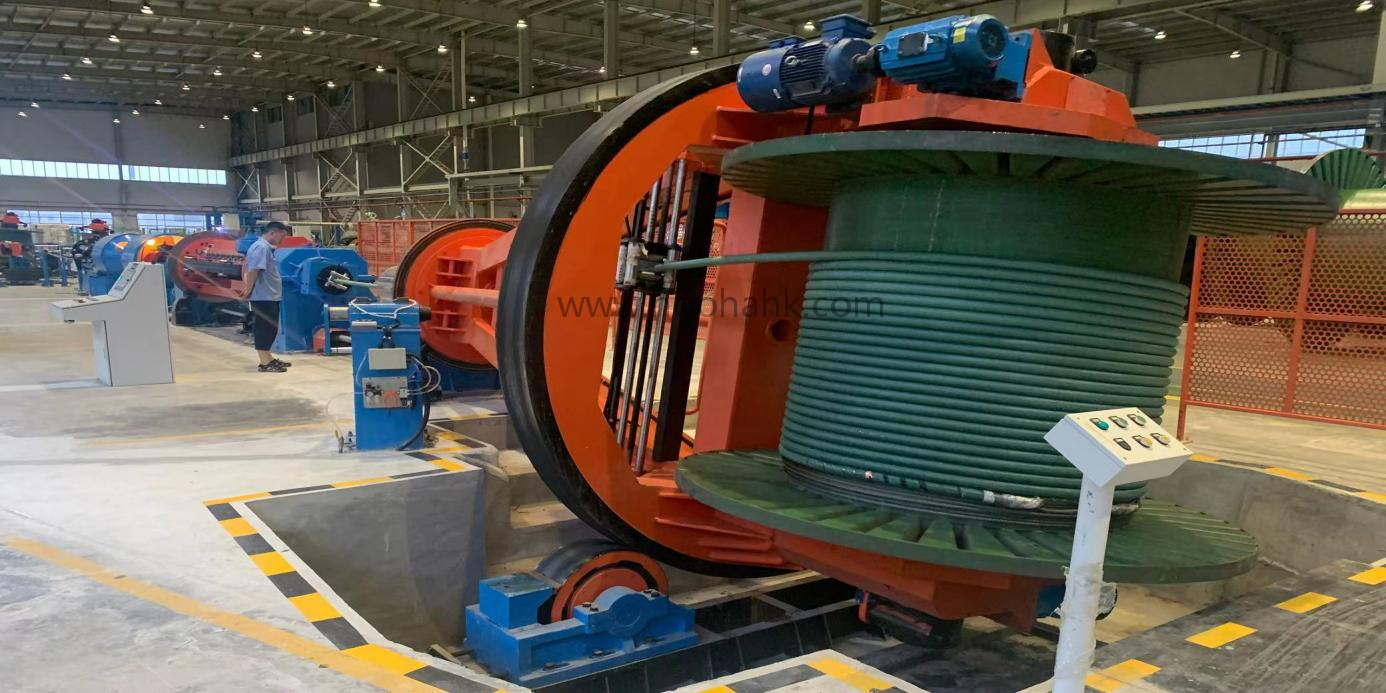

HH-DT-2500 Drum type insulated laying up machine
This equipment is suitable for large cross-section and large length power cables stranding, and can be used for stranding pre-back twisting or non-pre-back twisting cable core laying up, with additional function of steel wire armoring and steel belt armoring.

Composition of 2500 Drum twister
1	Ø1600 fork type rotating payoff frame	five set
2	Well type wire frame	five set
3	Wire assembly die frame	one set of each size
4	Filling rope pay-off frame	two sets
5	Steel wire pay-off frame (54 heads)	two sets
6	Steel wire guiding frame (27 heads)	four sets
7	Wire pre-twisting device (108 heads)	one set
8	Three rows of pressure mold frame and dividing board	one set
9	630/2 non-metallic taping device	one set
10	800/2 metal taping device	One set
11	Meter counter	one set
12	5T rotary traction device (with meter counting)	one set
13	Ø3150 rotary take-up device	one set
14	Electric lifting platform	one set
15	Security fence	one set
16	Electrical control system	one set

Details Images

Technical parameters
No.	Item	Figure
1	Inlet single wire diameter	≤Ø50mm
2	Maximum stranded outer diameter	Ø120mm
3	Maximum twisting speed of drum/pay-off	35r/min
4	Stranding pitch	Stepless adjusted
5	Maximum traction line speed:	50m/min
6	Maximum rotation speed:	35m/min
7	Maximum traction force	5T
8	Maximum speed of non-metallic taping	500r/min
9	Non-metallic wrap size:	Ø630Ø80(15-80)mm
10	Non-metallic taping pitch	Stepless adjusted
11	Maximum speed of steel belt taping	350r/min
12	Steel belt wrap size	Ø800Ø130(15-60)mm
13	Steel belt tapingpitch	Stepless adjusted
14	Main pay-off unit size	PN3D: 1600mm
15	Steel wire pay-off size	PND: 630mm (108 heads)
16	Take-up size	PND: 3150mm
17	Filling rope specifications	Ø400×Ø22×360mm ; Ø800×Ø52×320mm
18	Pay-off rotating motor	15KW(AC)
19	Non-metallic taping motor	7.5KW(AC)
20	Metallic taping motor	18.5KW(AC)
21	Traction motor	18.5KW×2(AC
22	Take-up rotary motor:	55KW(AC)
23	Equipment center height	1000mm
Manufacturing process

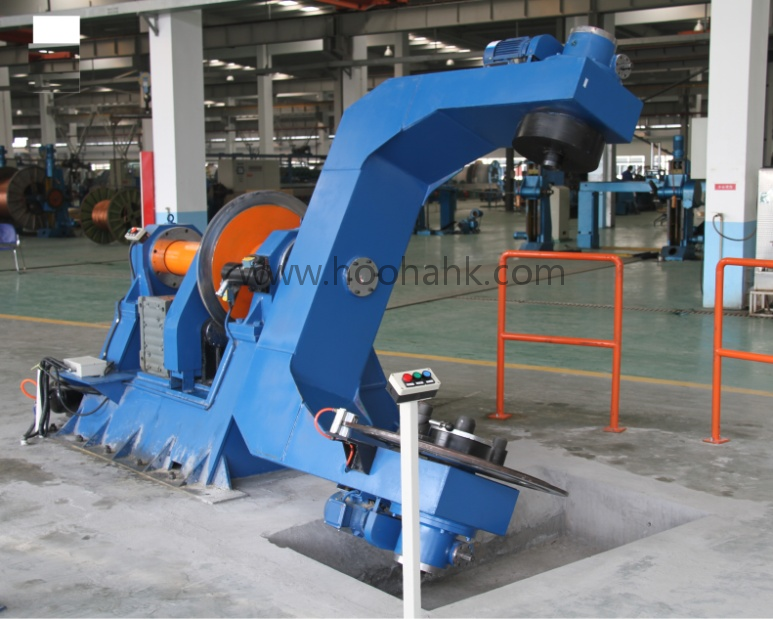

Ø1600 fork type rotating payoff frame

4.1.1 The pay-off frame is forked cantilever structure with a maximum load of 12T. 4.1.2 The pay-off is driven by a separate AC variable frequency motor with variable frequency speed regulation. 4.1.3 The bobbin clamping is end-shaft type and driven by an independent motor to clamp and relax the bobbin. 4.1.4 The pay-off tension is controlled by pneumatic, the tension size is 10-150KG, which can be adjusted at will in stopping and running state. 4.1.5 The pay-off frame can rotate synchronously with the take-up frame, can be fixed without rotation, or can be rotated by manual control pointing. 4.1.6 The brake of the payoff frame adopts pneumatic brake device. 4.1.7 Each payoff frame is equipped with an operating station, which can control the payoff frame to rotate or stop point by point.

800/2 steel belt tapingdevice

4.7.1 Maximum over cable core: Ø120. 4.7.2 The structure of the tapingmachine is half tangent type, double support form before and after, driven by AC frequency conversion motor alone, frequency control, with left and right function; through the electrical control can be single-action or linkage control; the equipment is equipped with emergency stop, click button. The machine is equipped with emergency stop and start button. It has belt break and finish belt alarm. 4.7.3 Adopt front and rear double support, rolling steel belt armored device; the armored rotating body adopts frame structure, the steel belt is adjusted by guide rollers, easy and safe operation. 4.7.4 Wrapping material for steel tape and other metal wrapping materials. 4.7.5 The belt tension is controlled by

5T rotary caterpillar traction device


4.7.1 Maximum cable outside diameter that can be passed: Ø130 4.7.2 Traction motor: 18.5KW(AC)×2 4.7.3 Maximum traction line speed: 50m/min 4.7.4 Adopt upper and lower flat belt type traction, pneumatic clamping, tensioning, upper and lower two traction belt each with an AC frequency conversion motor driven separately. Traction speed is steplessly adjustable. 4.7.5 Traction host and rotary retapingframe main motor ground shaft linkage, rotation and speed and rotary retapingframe the same. 4.7.6 Braking with pneumatic braking device.
